Plywood Description：

Die plywood is plywood attaches die cutting rule  in a specific pattern, die cutting plates are widely used in carton packaging and printing, advertising production, clothing cutting, food processing and other industries. They can improve production efficiency, reduce production costs, and improve product quality.



Die Plywood Types

Cutting die plates can be categorized into various types based on their structure, shape, and purpose.

1. Flat die plywood: These have a simple structure and low production cost, making them suitable for cutting materials such as cardboard and plastic sheets.

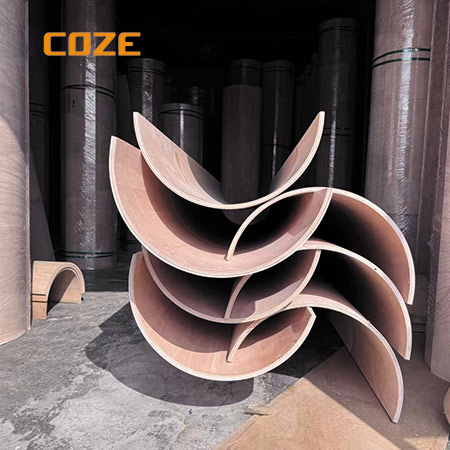

2. Curved die plywood: These are also called curved cutting dies and are used for cutting curved materials such as circles, ovals, and arcs.

3. Special-shaped die plywood: These have irregular shapes and are often used for cutting materials with complex shapes.



Plywood Specification：

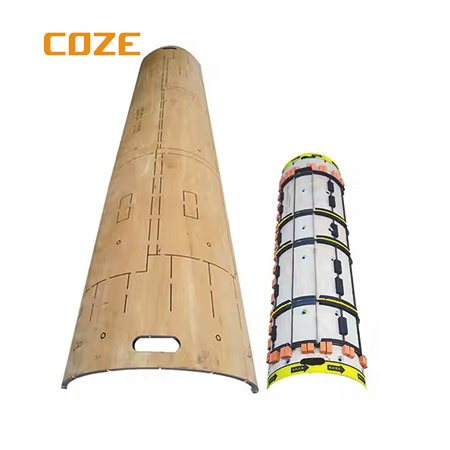

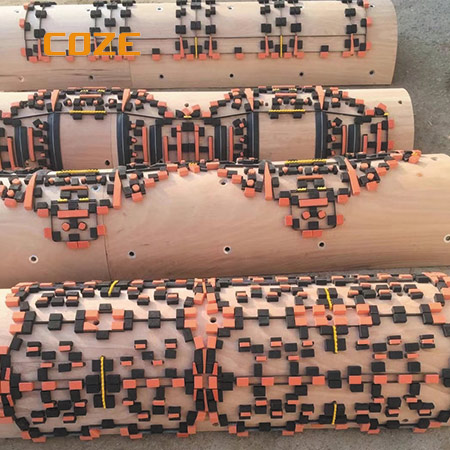

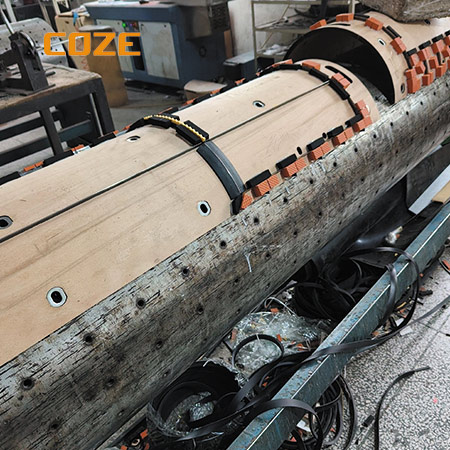

Products Name	Rotary Die Plywood
Thickness	13mm; 15mm
Length	1.8m; 2.2m; 2.4m; 2.5m; 2.8m; 3.0m
Diameter	φ180;φ250;φ360;φ410;φ440;φ487;φ536;φ676;φ800
Tolerance	± 0.1mm
Core Veneer	Birch; Poplar; Beech
Face Veneer	Birch; UV coating
Glue Grade	MR; Phenolic

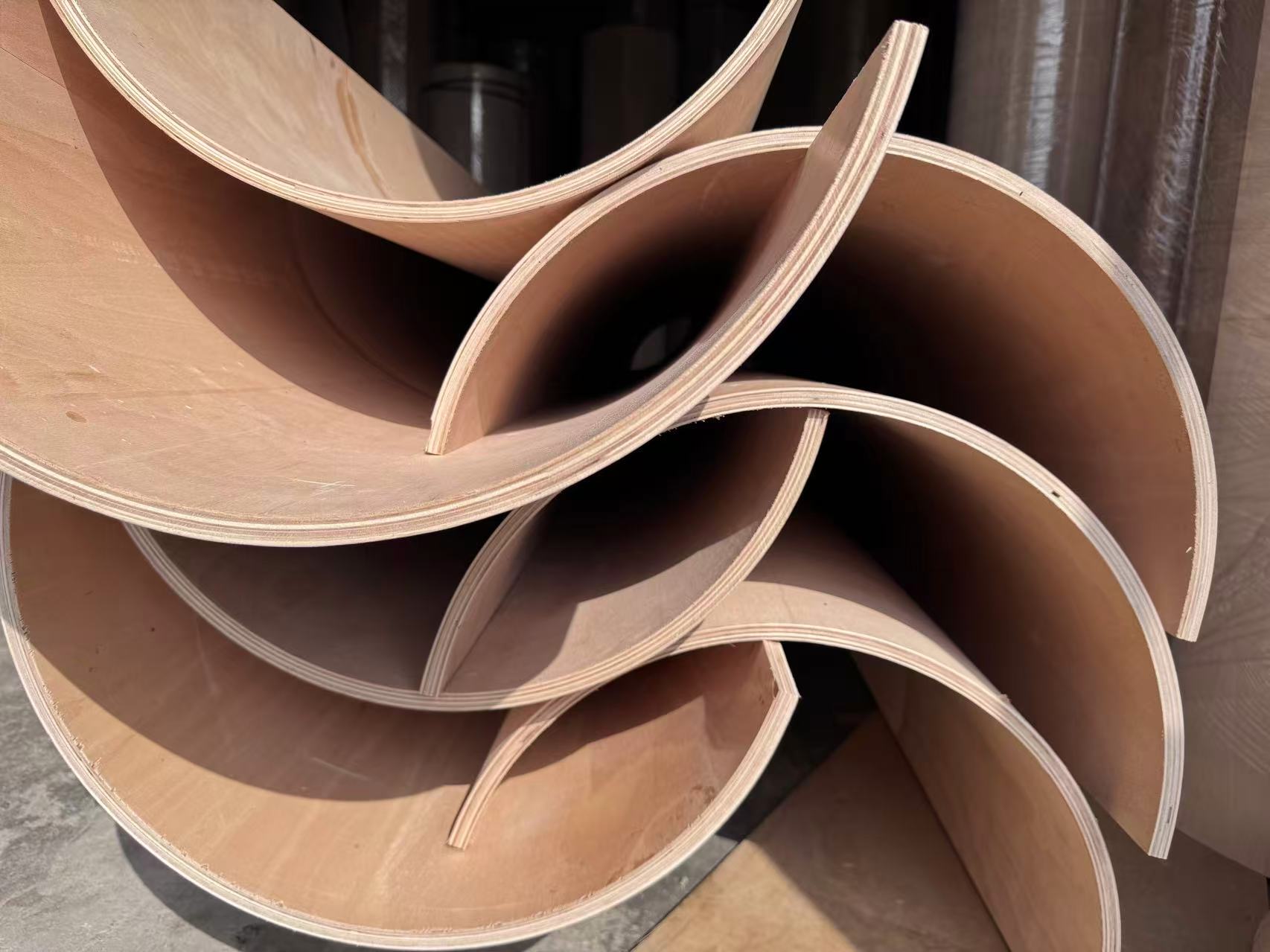

Details Display：

Stability: Resists deformation and moisture, preventing cracking or warping due to environmental influences.

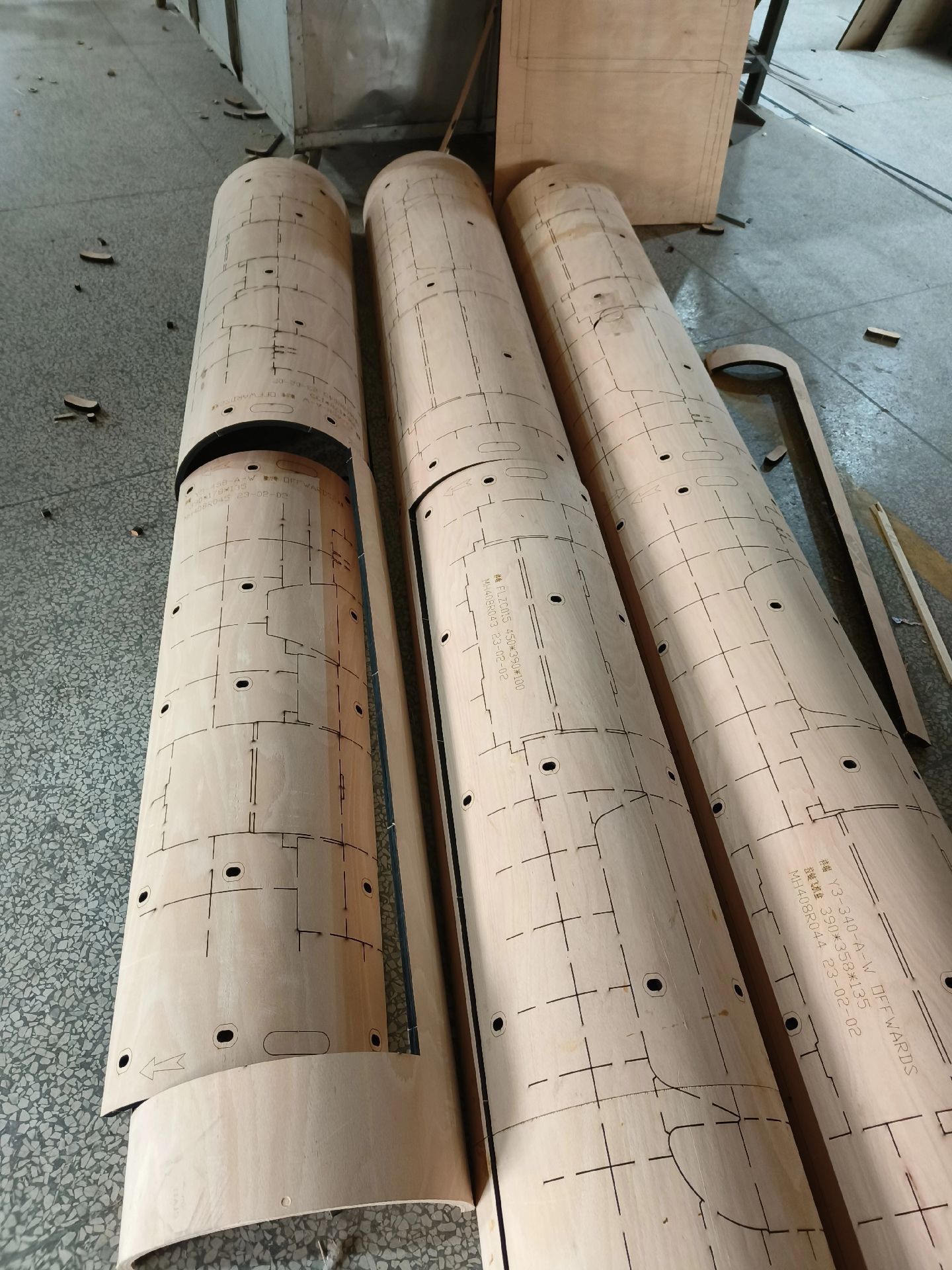

Uniformity: The bonded layer is free of bubbles and impurities, ensuring laser or engraving accuracy.



Die Plywood Applications

1.Forming and cutting of packaging boxes

2.Die-cutting of labels and stickers

3.Special shaping of greeting cards and books

4.Cutting of leather and textiles
