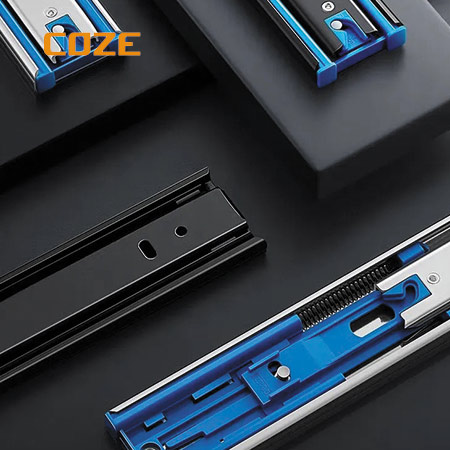

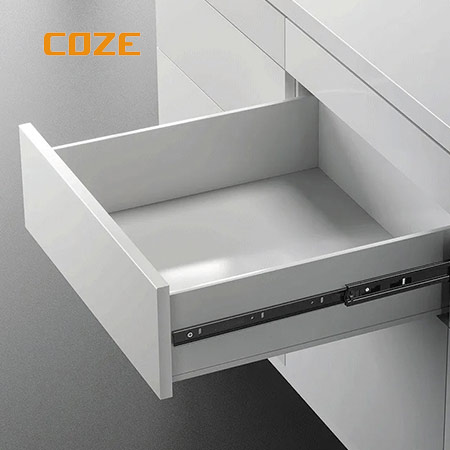

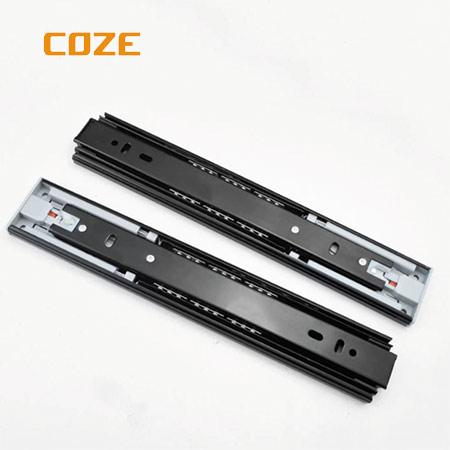

Slideway Description：

Cabinet drawer slideway (also called slider, guides) are crucial components for smooth drawer opening and closing. Choosing and using the right slide is crucial, as it directly impacts the drawer's lifespan, smoothness, load-bearing capacity, and overall user experience.



When selecting cabinet drawer slideway, first consider the drawer depth (which determines length) and the expected load capacity. Then, choose the type and brand based on budget, aesthetic requirements (e.g., whether the drawer should be concealed), and functional requirements (e.g., whether full extension or cushioning is required).



Key Selection Factors

Length: Must precisely match the drawer's depth (the inner diameter from front to back). Common lengths include 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, and 550mm. Be sure to accurately measure the drawer depth before purchasing.



Load Capacity: Choose a drawer based on the weight of the items you plan to store. It's generally recommended to choose a size slightly higher than the estimated weight to provide for increased durability. Side-mount drawers typically hold 15-30kg, while high-quality bottom-mounted/saddle-type drawers can reach over 30kg or even 45kg.



Drawer Extension:



Partial Extension: The drawer can only be extended approximately two-thirds of the way.



Full Extension: The drawer can be fully extended, making it easy to access items even at the deepest points. This is the current mainstream option.



Over-Extension: The drawer extends a short distance (usually a few centimeters) beyond the cabinet when extended, providing more room for maneuvering.



Cushioning: Also known as self-closing or damping, this feature allows the drawer to close gently, quietly, and slowly, without a thumping sound, as it's pushed back to its near-closed position. Highly recommended, it significantly enhances the user experience and the cabinet's premium feel. It's important to distinguish between "cushioning" and "rebounding" (the latter requires pressing the drawer panel to open).
