Hinge Description：

The hinge connects the door to the cabinet body, bearing the weight of the door panel and enabling rotational opening and closing.

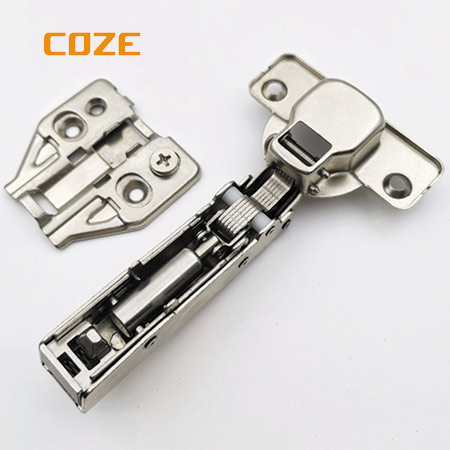

The cushioning hinge (hydraulic/damping type) uses hydraulic technology to slowly lower the door when it is closed to 60°, gently closing within 4-6 seconds, eliminating slamming noise and protecting the door panel structure. Even with forceful slamming, the door decelerates smoothly.



Hinge Type

一、Classification by installation effect:

Type	name	Side panel coverage	Application
Full-cover hinges	straight-bend	Fully cover the side panel (18mm)	standalone cabinets
Half-cover hinges	mid-bend	Half cover the side panel (approximately 9mm)	middle door of a pair of doors sharing a side panel
Concealed hinges	large-bend	conceal the door panel within the cabinet, leaving the side panels completely exposed	minimalist designs or built-in door panels



二、Classification by function and technology:

Single-stage hinge: No hold after opening beyond 35°, sudden closing can damage the door panel (gradually phased out) .



Two-stage hinge: Holds at any angle, automatically closes within 35°, and is silent and collision-resistant (currently mainstream) .



Touch-activated hinge: Press the door panel to automatically open, freeing your hands (new high-end model).



三、Classification by materials:

Cold-rolled steel with a uniform, rust-resistant electroplating layer (salt spray test ≥ 48 hours).



Stainless steel, suitable for humid environments.



四、Classification by structure，Hinge can be divided into fixed type and detachable type.
