Plywood Description：

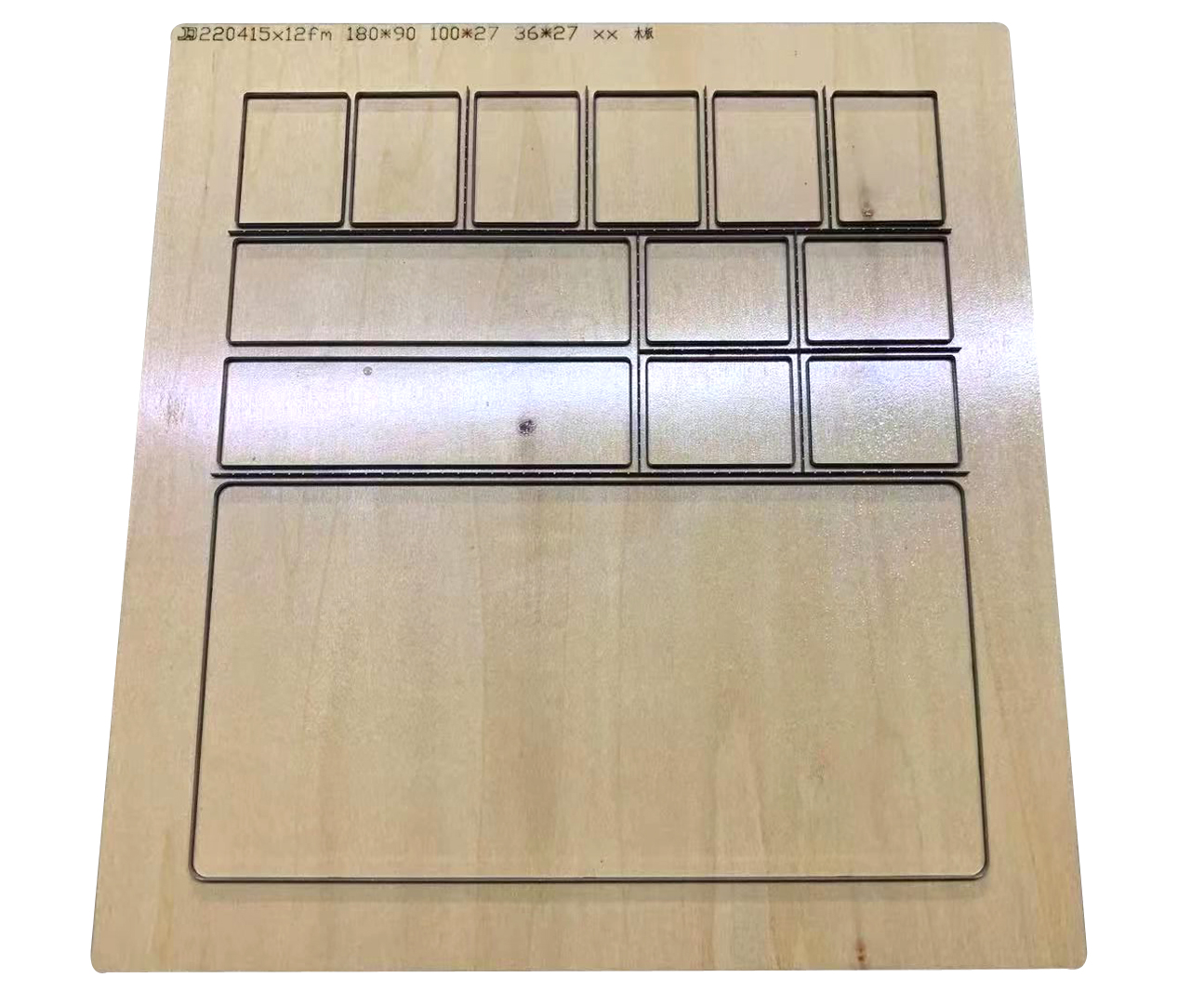

Die plywood is a type of plywood used in the printing and packaging industry, primarily for die-cutting. that attaches die cutting rule to plywood in a specific pattern, allowing for precise die-cutting of various materials.



The quality of the die plywood board directly affects the precision and production efficiency of the die-cut products. It is widely used in many industries such as packaging, printing, electronics, toys, food, etc., especially in the field of product processing that requires precise shapes.

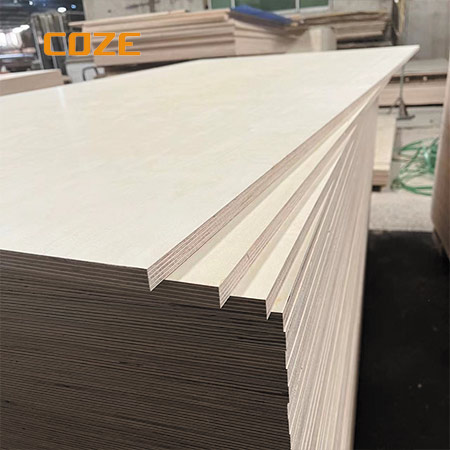

Plywood Specification：

Products Name	Flat Die Plywood
Size	1220*1220mm 1200*1830mm 1220*2440mm
Thickness	12mm; 15mm; 18mm

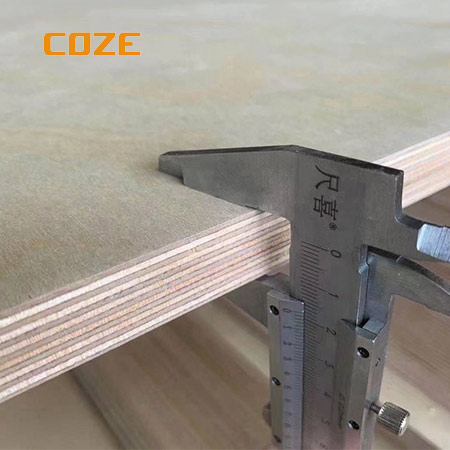

Tolerance	± 0.1mm
Core Veneer	Birch; Poplar; Eucalyptus

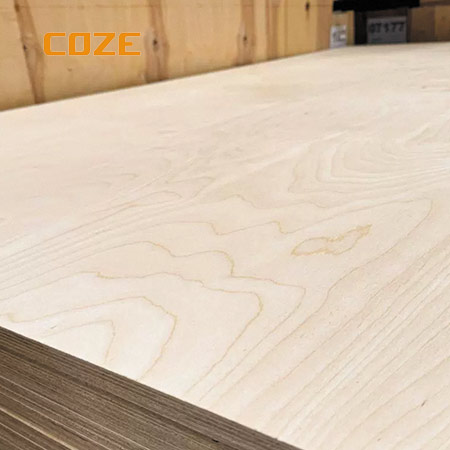

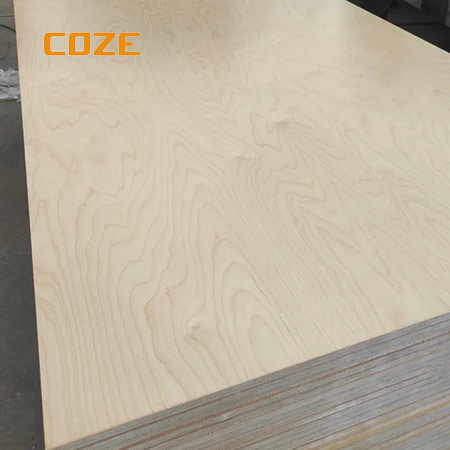

Face Veneer	Birch; UV coating
Glue Grade	MR; Phenolic

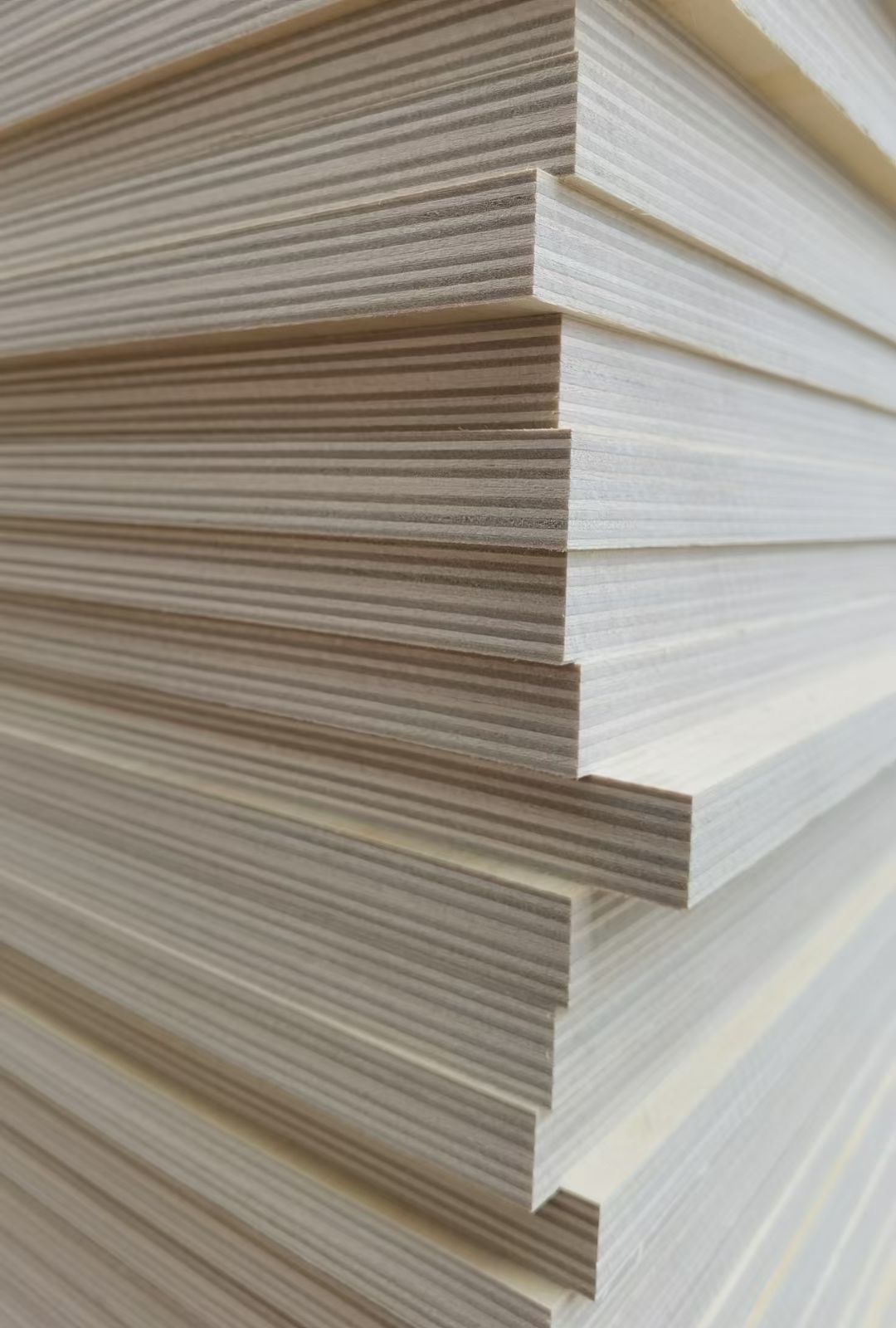

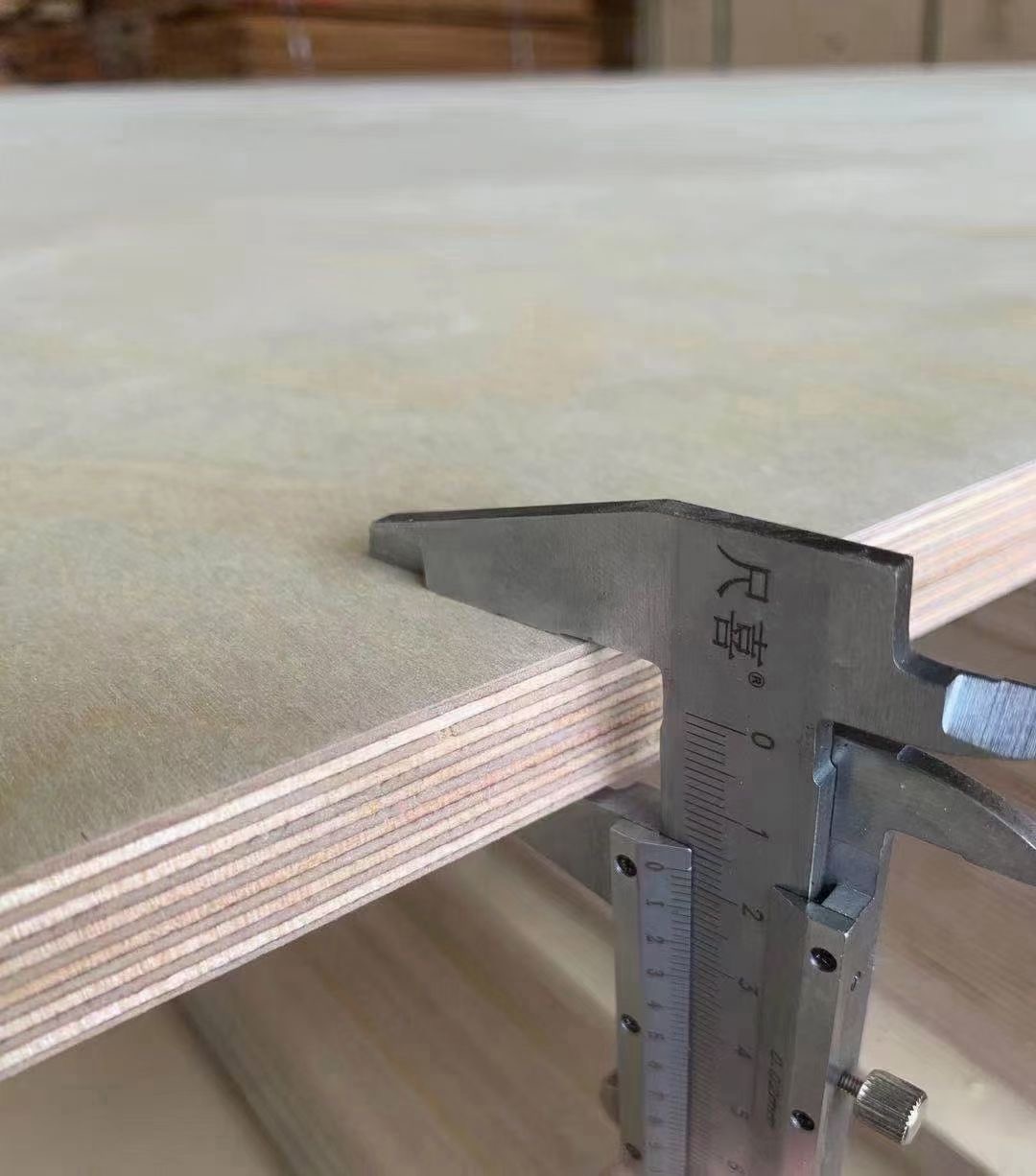

Details Display：

High Density: Ensures smooth, burr-free edges during die cutting.

Stability: Resists deformation and moisture, preventing cracking or warping due to environmental influences.



Uniformity: The bonded layer is free of bubbles and impurities, ensuring laser or engraving accuracy.

Healthy: Some industries (such as food packaging) require compliance with E1 standards .

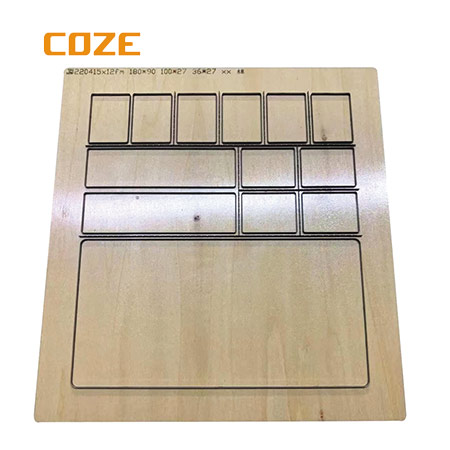

Die Plywood Process

1. Computer layout according to the design drawing

2. Laser or high-pressure water jet cutting of the base plate

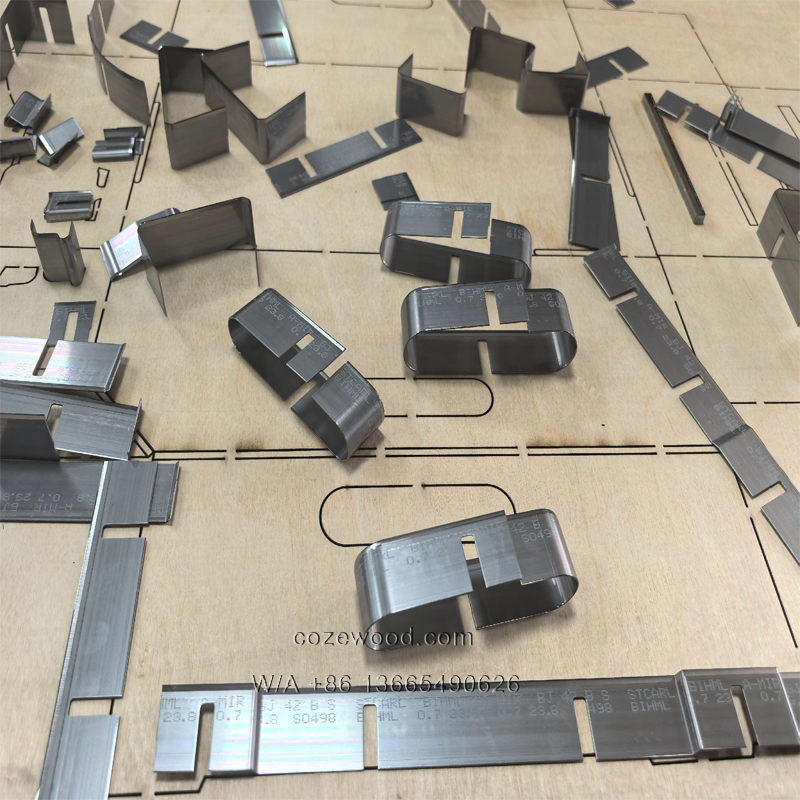

3. Bend the steel blade into the desired shape and secure it to the base plate

4. Add necessary indentation lines and sponge strips

5. Quality Inspection



Die Plywood Applications

1.Forming and cutting of packaging boxes

2.Die-cutting of labels and stickers

3.Special shaping of greeting cards and books

4.Cutting of leather and textiles
